OutBack Power Systems
Inverters and Charge Controllers

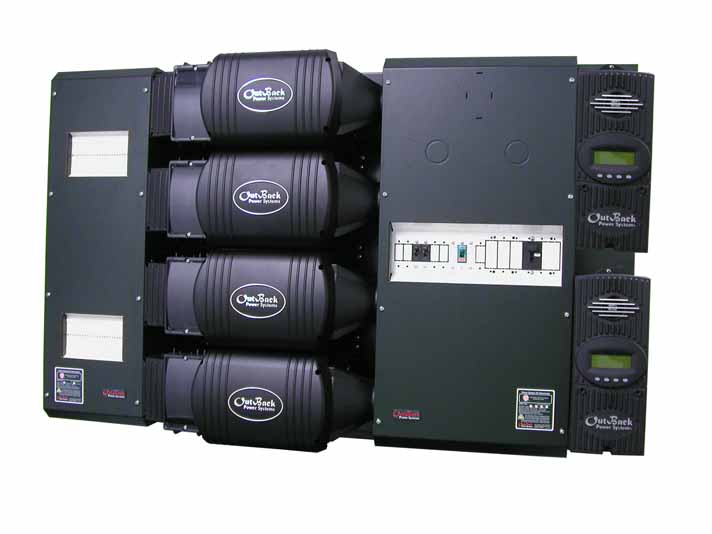

Outback Power Systems power inverters and combiner boxws

OutBack Power Systems has come up with a full line of charge controllers and sine wave inverters that make system design, installation, operation, and maintenance a breeze. All of these components can be easily tied together to form a safe and complete NEC-compliant system.  Note:  if you buy your power system from us, there will be system discounts over and above the prices listed here.

*************

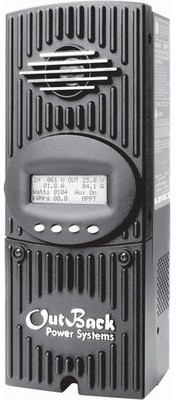

OutBack Power Systems FLEXmax MPPT Charge Controller


OutBack FLEXmax
charge controllers are the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing photovoltaic array power yield up to 30% compared to non-MPPT controllers. Providing active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).

FLEXmax charge controllers retain the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80-character display shows the current status and logged system performance data for the last 128 days at the touch of a button. Integrated OutBack network communications allow remote programming and monitoring of FLEXmax series Charge Controllers via a MATE system display and provide unrivaled complete system integration.


For more detailed information, go to:
http://www.outbackpower.com/products/charge_controllers/flexmax/


Model Description
FM60-150VDC 12, 24, 36, 48, or 60 VDC (Single model - selectable via
field programming at start-up)
RTS HUB 4, HUB 10, MATE, MATE2
FM80-150VDC 12, 24, 36, 48, or 60 VDC (Single model - selectable via
field programming at start-up)
RTS HUB 4, HUB 10, MATE, MATE2




Outback Power Systems FX Sine Wave Remote Power Inverters

OutBack Power's line-up of inverters has grown considerably over the past few years, now offering six different power levels at a variety of voltages ranging from 12 to 48 VDC. All FX inverters offer pure sinewave output, a high current battery charger, and AC transfer switch. Multiple pairs of FX inverters can be connected (using HUB) configured for 220/240 VAC split-phase output (using MATE) for a maximum of 10 inverters. Three FX inverters can be connected in parallel for 60 Amp AC input and transfer relay. The gasketed die-cast aluminum chassis protects and keeps the power conversion components cool. Sealed units are waterproof to IEC529 IP65 standards and have an operational temperature range of -40°C to -60°C. The vented version has stainless steel screens to protect the air intake and internal fan. The air inlet comes with a removable, washable foam filter insert. FX inverters are compatible with OutBack FLEXware enclosures and racks. All are 120VAC/60 Hz single phase. Available in 230 VAC/50 Hz versions and mobile versions with built-in AC-neutral/ground switching system. FX series can surge two times their power rating.

For more detailed information, go to:
http://www.outbackpower.com/products/sinewave_inverter/



FX series power inverter specification chart:

Model FX2012T FX2524T FX3048T VFX2812 VFX3524 VFX3648
Price
Enclosure Sealed - weather resistent Vented Vented Vented
Nominal DC Input Voltage 12 VDC 24 VDC 48 VDC 12 VDC 24 VDC 48 VDC
Continuous Power Rating
at 25° C
2000 VA 2500 VA 3000 VA 2800 VA 3500 VA 3600 VA
AC Voltage/Frequency 120 VAC 60 Hz
Continuous AC RMS Output at 25° C 17.0 amps AC 20.8 amps AC 25.0 amps AC 23.3 amps AC 29.2 amps AC 30.0 amps AC
Full Idle Power ≈ 20 Watts ≈ 20 Watts ≈ 23 Watts ≈ 20 Watts ≈ 20 Watts ≈ 23 Watts
Search ≈ 6 Watts
Typical Efficiency 90% 92% 93% 90% 92% 93%
Typical Total Harmonic Distortion 2%
Maximum 5%
Output Voltage Regulation ± 2%
Peak Maximum AC
Output Current
56 amps 70 amps 70 amps 56 amps 70 amps 70 amps
RMS AC 40 amps 50 amps 50 amps 40 amps 50 amps 50 amps
Surge AC Overload Capability 4800 VA 6000 VA 6000 VA 4800 VA 6000 VA 6000 VA
5 Second 4000 VA 4800 VA 4800 VA 4000 VA 5000 VA 5000 VA
30 Minutes 2500 VA 3200 VA 3200 VA 3200 VA 4000 VA 4000 VA
AC Input Current Maximum 60 amps AC
AC Input Voltage Range (MATE Adjustable) 80 to 150 VAC
AC Input Frequency Range 54 to 66 Hz
DC Input Voltage Range 10.5 to 17.5 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC 10.5 to 17.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC
Continuous DC
Battery Charge Output
80 amps 55 amps 35 amps 125 amps 85 amps 45 amps
Warranty Standard 2 year / Optional 5 year
Unit Weight 56 lbs (25 kg) 54 lbs (25 kg)
Shipping 67 lbs (30 kg) 62.2 lbs (28 kg)
Unit Dimensions
(H x W x L)
13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm)

********
